Subnets

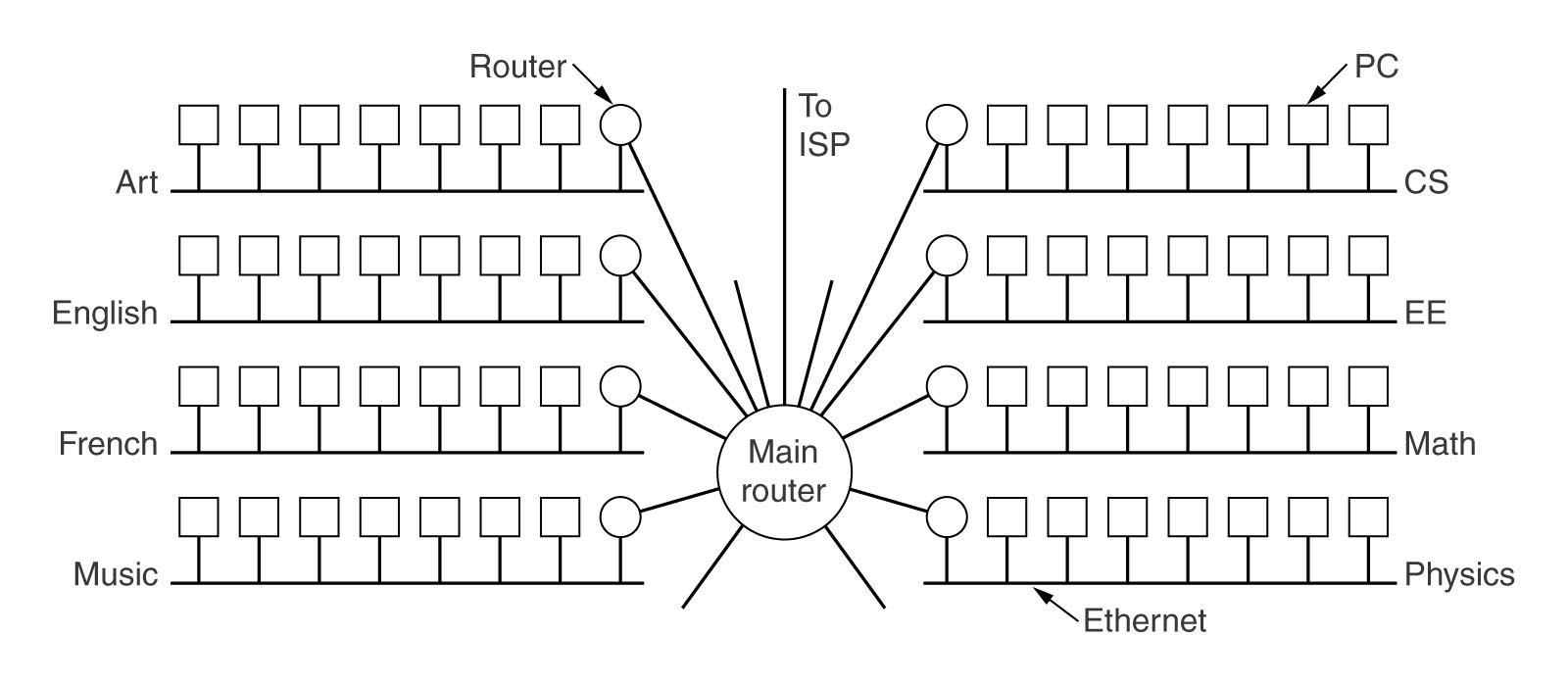

Typically on a campus, each dept. might have its own LAN:

Above, each Ethernet is called a subnet.
Whole campus just appears as one network to outside world.
Campus main router has to route to correct Ethernet.

---

Subnet mask

Some bits are taken away from the host number and used as the subnet number. e.g. A 6 bit subnet number would allow for 64 Ethernets.
Main router is simple - It doesn't need to know about every host in system. It just needs to forward to the correct Ethernet.

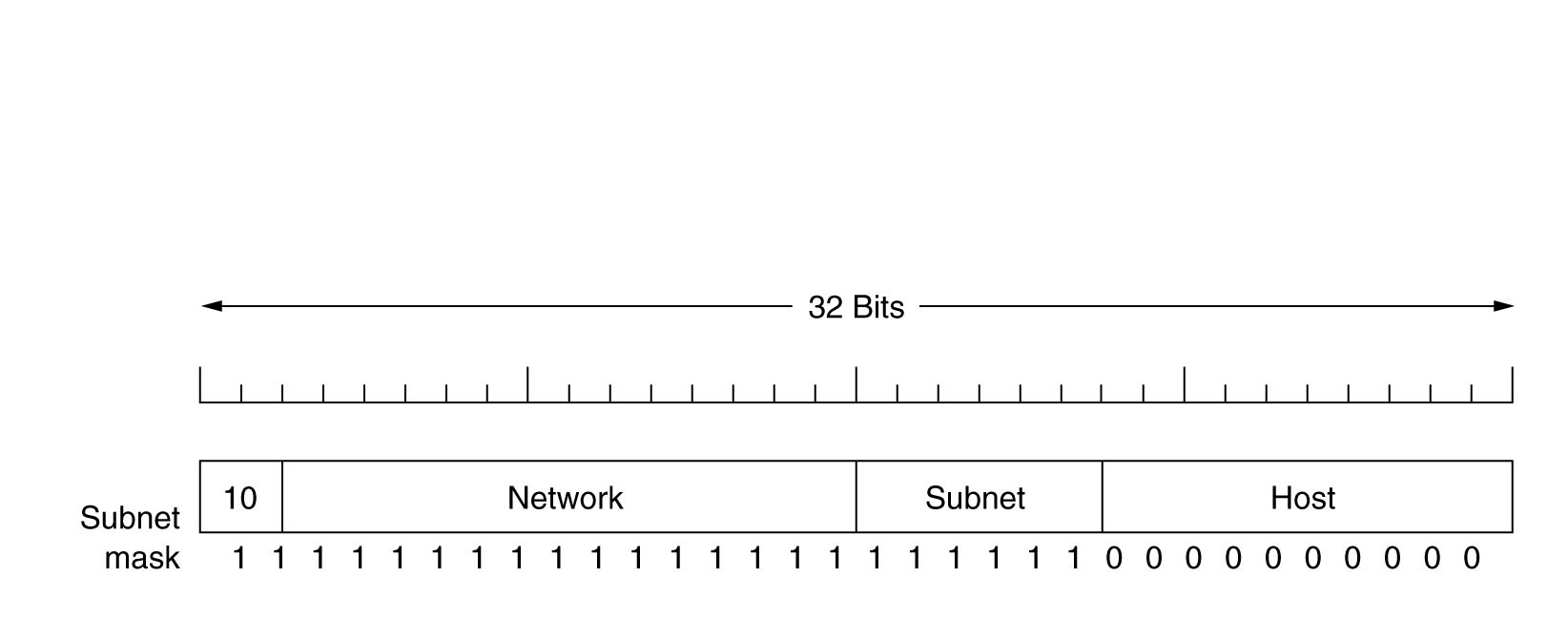

Subnet mask is used to indicate the split in the host number bits:

Above: 6 bit subnet number. 10 bit host number on subnet.
Subnet mask: 1111 1111 1111 1111 1111 1100 0000 0000
= 255.255.252.0

• Subnet Calculator

Outside the organisation (the campus), the subnetting is not visible. So the organisation can change its subnet organisation without informing anyone.

---

Example

Organisation owns 130.50.*.*
It decides on a 6 bit subnet number (64 subnets).
Leaving 10 bit host number on subnet (1024 hosts on each subnet).
(As in diagram above)

With a 6 bit subnet number, the subnet number cannot be easily read from the decimal version of the IP address.
Blue is subnet number:

		Binary version of IP	Decimal version of IP
Address of Subnet 1	(network address) (subnet 1) (0)	1000 0010 0011 0010 0000 0100 0000 0000	130.50.4.0
Subnet 1 starts at	(network address) (subnet 1) (host 1)	1000 0010 0011 0010 0000 0100 0000 0001	130.50.4.1
Subnet 1 ends at	(network address) (subnet 1) (host 1023)	1000 0010 0011 0010 0000 0111 1111 1111	130.50.7.255
Address of Subnet 2	(network address) (subnet 2) (0)	1000 0010 0011 0010 0000 1000 0000 0000	130.50.8.0
Subnet 2 starts at	(network address) (subnet 2) (host 1)	1000 0010 0011 0010 0000 1000 0000 0001	130.50.8.1
Subnet 2 ends at	(network address) (subnet 2) (host 1023)	1000 0010 0011 0010 0000 1011 1111 1111	130.50.11.255
Address of Subnet 3	(network address) (subnet 3) (0)	1000 0010 0011 0010 0000 1100 0000 0000	130.50.12.0
Subnet 3 starts at	(network address) (subnet 3) (host 1)	1000 0010 0011 0010 0000 1100 0000 0001	130.50.12.1
Subnet 3 ends at	(network address) (subnet 3) (host 1023)	1000 0010 0011 0010 0000 1111 1111 1111	130.50.15.255

.... And so on ....

On some older protocols subnet all 0's and subnet all 1's were reserved. On newer protocols they are not.

A router on subnet k knows about hosts on local subnet k and about routers for other subnets (it does not know about hosts on other subnets).
It has a table of addresses: (network address) (subnet k) (host) telling how to get to a host on the local subnet
and: (network address) (other subnets) (0 only) telling how to get to that other subnet. No info about hosts on other subnets is held.

Example: Packet addressed to: 130.50.15.6 = 1000 0010 0011 0010 0000 1111 0000 0110 = (network address) (subnet 3) (host 774)
If this is subnet 3, the IP address will be in the routing table and the packet will be sent directly to the host.
Else we need to send to another router:
AND with subnet mask (above): 1111 1111 1111 1111 1111 1100 0000 0000
= 1000 0010 0011 0010 0000 1100 0000 0000 = (network address) (subnet 3) (host 0)
i.e. just change last 10 bits to 0
= 130.50.12.0
This is found in routing table as address for subnet 3. Packet is sent on to that subnet, for eventual forwarding to host.

In general:
(IP Address) AND (Subnet Mask) = (Subnet Address)

---

DCU topology

• DCU has simple topology:
  • CA, EE have their own networks - each has one router linked direct to ISS router
  • everyone else in DCU links direct off ISS
  • ISS has n external links, all to Heanet (see Heanet dynamic map)

---

DCU subnets

First 16 bits are the DCU network number 136.206.
The Windows command:

$ ipconfig

shows:

Subnet Mask ... 255.255.255.0

i.e. 8 bit subnet number.
i.e. 256 possible subnets here, each with maximum 256 machines:
136 . 206 . (subnet) . (host)

Check your IP address. You'll find different subnets being used from room to room in CA.
i.e. Multiple Ethernets within CA alone.

Each node is a full Internet node (IP address). Doesn't really matter which Ethernet you are on.
Though may be useful to divide organisation into fixed groups so can easily restrict access to web page based on IP address, etc.

e.g. at time of writing:

Subnet	Use	Users
10	LG01, L101, L128, L201	undergrads
11	web server mail server ssh server sftp server DNS server staff Unix/Linux servers	all undergrads staff, postgrads
17	L114, L129, L130	undergrads
18	LG25, LG26, LG27, LG28, L125	undergrads
19	postgrad machines	postgrads
115	staff machines	staff
217	student servers	undergrads
218	wireless LAN	all

Apart from the users, there is also one file server machine on every subnet.

• These subnets are actually Virtual LANs:
  • These subnets are actually all (except wireless) on the same hardware LAN. They are divided into separate software LANs (Virtual LANs) by router software.
  • i.e. You cannot see packets on a different Virtual LAN - but this is enforced by software, not hardware.

• ISS has wireless LAN(s) also.
